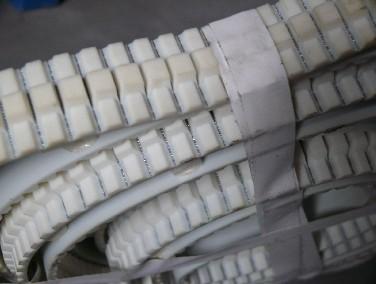

MEGADYNE聚氨酯開口同步帶同步帶輪工業皮帶輸送帶

產品價格：￥請聯系（人民幣）

規格：齊全

發貨地：奉賢

品牌：

最小起訂量：1條

QQ洽談點擊詢價進入商鋪

上海復謙工業皮帶有限公司

誠信商家

會員級別：

認證類型：企業認證

企業證件：通過認證

認證信息：上海復謙工業皮帶有限公司

商鋪名稱：上海復謙工業皮帶有限公司

聯系人：汪慶鋒（先生）

聯系手機：

固定電話：

企業郵箱：hxbelt@163.com

聯系地址：上海奉賢柘林滬杭公路3217號

郵編：201400

聯系我時，請說是在焊材網上看到的，謝謝！

商品詳情

Various model parameters of the V-ribbed belts

Model
Wedge from the Pb
With height h
Wedge angle a °

PH
1.6
3
40

PJ
2.34
4
40

PK
3.56
6
40

PL
4.7
10
40

PM
9.4
17
40

Ribbed products in the raw materials used

The neoprene Ribbed Belt has certain cold and heat resistance, not only resistant to flexion flex its resistance to aging, ozone resistance than the general unsaturated rubber, and the good oil resistance, solvent resistance and chemical stability, by adding short-fiber reinforcement can withstand higher lateral pressure increase with a wedge pressure resistance, to reduce the force deformation.

EPDM ribbed belts in the resistance to aging is more excellent resistance to ozone aging resistance, weather resistance, heat aging resistance, and electrical insulation properties, resistance to chemical corrosion, the impact of good elasticity (flexibility at low temperatures keep good performance).
The company produces rubber Ribbed products, the introduction of foreign advanced technology and production equipment, professional production companies sentinel procurement imports the main raw materials (such as reinforcing materials, rubber, etc.) leading from abroad.

Characteristics of ribbed belts of

Rubber Ribbed both v with peace with the advantages of both, both the flat band of soft, resilient characteristics, and v with compact, efficient. Ribbed main features are as follows:
Ribbed belt drives power the same space than ordinary V-belt transmission function and death of 30%.

The Ribbed tight transmission system, in the case of the same transmission power, the transfer device share space 25% smaller than common V belts.

Ribbed with a thin body, full of flexibility to adapt to the small drive pulley diameter, and high-speed transmission with speed up to 40m / s; vibration, less heat, smooth operation.

Ribbed heat resistance, oil resistance, wear resistance, the use of small elongation and long life.

Ribbed purchase Note:

Ribbed belt pulley diameter, wedge slot selection of the appropriate specification model and the wedge number.
The Ribbed products Note:
Ribbed belt in use piles of oil or water, should be promptly removed or dry;
Ribbed Belt packet angle too small, should change the location of the rear pulley to increase the wrap angle;
Ribbed belt tension is too small, should be appropriately increase the belt tension;

V-ribbed belts in the use of noise:

Ribbed slip arising, should the belt dry;
Ribbed Belt wedge slot embedded foreign body, it should be for the belt running protective enclosures;
Ribbed Belt pulley is skewed, adjust pulley position;
Ribbed products use vibration:
Belt tension is too small, should be appropriately increased tension;

The Ribbed products to use in the wedge damage:

Ribbed pulley and belt specifications model does not match;
Ribbed with a wedge coated with solvents or other chemicals;
Ribbed Belt belt use ambient temperature is too high, the cooling method should be improved;
Ribbed Belt pulley process parameters do not meet the standards or pulley rusty

多楔帶各型號參數

型號	楔距Pb	帶高h	楔角a°
PH	1.6	3	40
PJ	2.34	4	40
PK	3.56	6	40
PL	4.7	10	40
PM	9.4	17	40

多楔帶產品中使用的原料

氯丁橡膠多楔帶具有一定的耐寒與耐熱性能，不但耐屈撓性能良好，其耐老化性、耐臭氧老化性也比一般不飽和橡膠好，而且其有良好的耐油、耐溶劑及化學穩定性，加入短纖維補強可承受較高的橫向壓力，增加帶楔耐壓性能，減少受力后變形。
三元乙丙橡膠多楔帶在耐老化特別是抗臭氧老化性、耐氣候性、耐熱老化性方面更為優良，而且其電絕緣性能、耐化學腐蝕、沖擊彈性較好（在低溫下彈性保持性能較好）。

本公司生產的橡膠多楔帶系列產品，引進國外先進技術和生產設備，產品的主要原材料（如骨架材料、橡膠等）均從國外領先的專業生產公司定點采購進口。

多楔帶的特性

橡膠多楔帶兼有v帶和平帶二者的優點，既有平帶的柔軟、強韌的特點，又有v帶緊湊、高效等優點。多楔帶主要特點如下：
多楔帶傳動功率大，空間相同時比普通V帶的傳動功卒的高30％。
　
多楔帶傳動系統結構緊湊，在相同的傳動功率情況下，傳遞裝置所占空間比普通V帶小25％。
　
多楔帶帶體薄，富有柔軟性，適應帶輪直徑小的傳動，也適應高速傳動，帶速可達40m／s；振動小，發熱少，運轉平穩。
　
多楔帶耐熱、耐油、耐磨，使用伸長小，壽命長。

多楔帶選購時注意事項：
