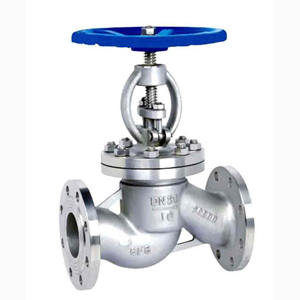

J41W不銹鋼截止閥結構特點
不銹鋼截止閥閥門采用平面密封和錐面密封兩種密封型式，可使用于不同工況的介質要求，具有密封性能穩定，使用壽命長。逆時針轉動手輪驅使閥桿帶動閥瓣及膈膜迅速上升，打開通道使介質順利通過。
J41W不銹鋼截止閥設計與制造標準：
1、設計制造按GB12235-89
2、結構長度按GB12221-89
3、法蘭尺寸按JB/G79-94
4、閥門檢查和試驗按GB13927
J41W不銹鋼截止閥性能規范
|
型號
|
公稱壓力
|
試驗壓力
|
工作溫度(℃)
|
適用介質
|
|
強度(水)(Mpa)
|
密封(水)空氣(Mpa)
|
低壓密封空氣(Mpa)
|
|
J41W-16P(R)
|
1.6
|
2.4
|
1.8
|
0.6
|
≤200
|
NITRIC ACID
|
|
J41W-25P(R)
|
2.5
|
3.8
|
2.8
|
0.6
|
≤200
|
硝酸類
|
|
ACETIC ACID
|
|
醋酸類
|
|
NITRIV ACID
|
|
硝酸類
|
|
J41W-40P(R)
|
4.0
|
6.0
|
4.4
|
0.6
|
≤200
|
ACETIC ACID
|
|
J41W-64P(R)
|
6.4
|
9.6
|
7.0
|
0.6
|
≤200
|
醋酸類
|
主要零件材質J41W不銹鋼截止閥
|
零件名稱
|
ZG1Cr18Ni9Ti
|
ZG00Cr18Ni10
|
ZG1Cr18Ni12Mo2Ti
|
ZG00Cr17Ni14Mo2
|
WCB
|
|
閥體/閥蓋
|
ZG1Cr18Ni9Ti
|
ZG00Cr18Ni10
|
ZG1Cr18Ni12Mo2Ti
|
ZG00Cr17Ni14Mo2
|
WCB
|
|
閥瓣
|
ZG1Cr18Ni9Ti
|
ZG00Cr18Ni10
|
ZG1Cr18Ni12Mo2Ti
|
ZG00Cr17Ni14Mo2
|
1Cr13
|
|
閥桿
|
ZG1Cr18Ni9Ti
|
00Cr18Ni10
|
1Cr18Ni12Mo2Ti
|
00Cr17Ni14Mo2
|
1Cr13
|
|
填料
|
PTFE編織
|
PTFE編織
|
PTFE編織
|
PTFE編織
|
石墨
|
|
墊片
|
304+PTFE
|
304L+PTFE
|
316+PTFE
|
316L+PTFE
|
石墨+304
|
|
壓蓋
|
ZG1Cr18Ni9Ti
|
ZG00Cr18Ni10
|
ZG1Cr18Ni12Mo2Ti
|
ZG00Cr17Ni14Mo2
|
WCB
|
|
填料壓環
|
1Cr18Ni9Ti
|
00Cr18Ni10
|
1Cr18Ni12Mo2Ti
|
00Cr17Ni14Mo2
|
1Cr13
|
|
螺栓
|
1Cr17Ni2
|
1Cr17Ni2
|
1Cr17Ni2
|
1Cr17Ni2
|
35CrMoA
|
|
螺母
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
45
|
1.6MPaJ41W不銹鋼截止閥主要連接尺寸及重量
|
尺寸
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
|
L
|
mm
|
130
|
150
|
160
|
180
|
200
|
230
|
290
|
310
|
350
|
400
|
480
|
600
|
650
|
750
|
850
|
950
|
|
H
|
mm
|
200
|
243
|
253
|
280
|
312
|
321
|
325
|
355
|
415
|
460
|
510
|
700
|
975
|
1115
|
1250
|
1380
|
|
W
|
mm
|
120
|
140
|
160
|
160
|
200
|
200
|
240
|
240
|
280
|
320
|
360
|
560
|
600
|
700
|
800
|
900
|
|
重量
|
kg
|
5
|
6.5
|
7
|
13.5
|
16
|
32
|
45
|
60
|
80
|
107
|
134
|
268
|
449
|
663
|
750
|
1170
|
2.5MPaJ41W不銹鋼截止閥主要連接尺寸及重量
|
尺寸
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
|
L
|
mm
|
130
|
150
|
160
|
180
|
200
|
230
|
290
|
310
|
350
|
400
|
480
|
600
|
650
|
750
|
850
|
950
|
|
H
|
mm
|
200
|
243
|
253
|
280
|
312
|
321
|
325
|
355
|
415
|
460
|
510
|
700
|
975
|
1115
|
1250
|
1380
|
|
W
|
mm
|
120
|
140
|
160
|
160
|
200
|
200
|
240
|
240
|
280
|
320
|
360
|
560
|
600
|
700
|
800
|
900
|
|
重量
|
kg
|
5
|
6.5
|
7
|
13.5
|
16
|
32
|
45
|
60
|
80
|
107
|
134
|
268
|
449
|
663
|
750
|
1170
|
4.0MPaJ41W不銹鋼截止閥主要連接尺寸及重量
|
尺寸
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
|
L
|
mm
|
130
|
150
|
160
|
180
|
200
|
230
|
290
|
310
|
350
|
400
|
480
|
600
|
650
|
750
|
850
|
950
|
|
H
|
mm
|
200
|
243
|
253
|
280
|
312
|
321
|
325
|
355
|
415
|
460
|
510
|
700
|
975
|
1115
|
1250
|
1380
|
|
W
|
mm
|
120
|
140
|
160
|
160
|
200
|
200
|
240
|
240
|
280
|
320
|
360
|
560
|
600
|
700
|
800
|
900
|
|
重量
|
kg
|
5
|
6.5
|
7
|
13.5
|
16
|
32
|
45
|
60
|
80
|
107
|
134
|
268
|
491
|
705
|
850
|
1234
|
6.4MPaJ41W不銹鋼截止閥主要連接尺寸及重量
|
尺寸
|
DN
|
15
|
20
|
25
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
|
L
|
mm
|
170
|
190
|
210
|
230
|
260
|
300
|
340
|
380
|
430
|
550
|
|
H
|
mm
|
195
|
228
|
250
|
325
|
360
|
410
|
450
|
485
|
537
|
646
|
|
W
|
mm
|
140
|
160
|
180
|
200
|
240
|
280
|
320
|
360
|
400
|
450
|
|
重量
|
kg
|
10
|
13
|
15
|
19
|
25
|
35
|
48
|
56
|
125
|
157
|
10.0MPaJ41W不銹鋼截止閥主要連接尺寸及重量
|
尺寸
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
L
|
mm
|
170
|
190
|
210
|
230
|
260
|
300
|
340
|
380
|
430
|
500
|
550
|
650
|
775
|
900
|
|
H
|
mm
|
195
|
228
|
250
|
325
|
360
|
410
|
450
|
485
|
537
|
|
840
|
925
|
1015
|
1200
|
|
W
|
mm
|
100
|
100
|
120
|
160
|
160
|
180
|
200
|
200
|
240
|
-
|
-
|
-
|
-
|
-
|
|
重量
|
kg
|
10
|
12
|
17
|
25
|
30
|
40
|
68
|
92
|
107
|
-
|
310
|
590
|
850
|
1040
|
16.0MPaJ41W不銹鋼截止閥主要連接尺寸及重量
|
尺寸
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
|
L
|
mm
|
170
|
190
|
210
|
230
|
260
|
300
|
340
|
380
|
430
|
500
|
550
|
650
|
|
H
|
mm
|
148
|
156
|
175
|
200
|
231
|
262
|
470
|
500
|
557
|
613
|
671
|
765
|
|
W
|
mm
|
100
|
100
|
120
|
140
|
160
|
180
|
360
|
400
|
450
|
450
|
500
|
500
|
|
重量
|
kg
|
4.64
|
7.42
|
10.07
|
12.3
|
15.2
|
29.71
|
65
|
83
|
125
|
175
|
249
|
375
|
-------------------------------------------------------------------------------------------
|
