適用材質Applicable materials
各類觸摸屏、導電膜、背光板、擴散膜、木材、紙張、橡膠、皮革、有機玻璃、壓克力、樹脂、布匹纖維及復合材料,亞加力工藝品，廣告裝飾、燈箱廣告品、標識制作、酒店道具、家具裝飾擺放用品，VCD/DVD 等家用電器面板,玻璃，PVC 膠板、椴木夾板、雙色板、楊木夾板、塑料板、木板、木竹、輕木板、夾板、ABS 板、中纖板等板材；各種滌綸布料、超細纖維無塵、無紡布、尼龍、帆布、牛仔布等絕大多數布料，制鞋制衣，皮革繡花， PU、PP、等、各類膠帶材料、觸控面板、開關薄膜、電子絕緣材料、泡棉、硬紙板(紙張)、印刷電路板瓦楞紙板、硬紙板、蜂窩紙板、泡沫板、塑膠板、薄木板，膠紙、灰板紙、墊片、卡紙等。
Various types of touch screen, conductive film, backlight board, diffusion film, wood, paper, rubber, leather, plexiglass, acrylic, resin, cloth fiber and composite materials, acrylic crafts, advertising decoration, light box advertising products, logo production , Hotel props, furniture decoration items, VCD / DVD and other household appliance panels, glass, PVC plywood, linden plywood, two-color board, poplar plywood, plastic board, wooden board, wood bamboo, light wood board, plywood, ABS board , MDF and other plates; all kinds of polyester fabrics, microfiber dust-free, non-woven fabrics, nylon, canvas, denim and other fabrics, shoes and clothing, leather embroidery, PU, PP, leather, etc. Adhesive tape materials, touch panels, switch films, electronic insulation materials, foam, cardboard (paper), corrugated cardboard, printed circuit board, cardboard, honeycomb cardboard, foam board, plastic board, veneer, adhesive paper, gray board Paper, composite materials, gaskets, cardboard, etc.
|
|
型號 |
model |
|
|
HL-1490 |
|
|
|
|
|
|
|
|
|
|
|
|
|
有效幅面 Effective format |
|
|
1400mm*900mm |
|
||
|
|
整機尺寸長/寬/高 Overall size length / width / height |
2100mm*1350mm*1050mm |
|
||||
|
|
|
|
|
|
|
|
|
|
|
激光管功 Laser tube power |
|
|
100W |
|
||
|
|
總功率Total power |
|
1500W |
|
|||
|
|
|
|
|
|
|
|
|
|
|
激光器類型Laser type |
|
|
CO2封離式玻璃管激光器，水冷，10.6μ m CO2 sealed off glass tube laser, water-cooled, 10.6μm |
|
||
|
|
切割速度Cutting speed |
|
25-2400mm/min |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
激光能量控制 Laser energy control |
|
1～100%手動和軟件控制，實時可調 1 ～ 100% manual and software control, real-time adjustable |
|
|||
|
|
|
|
|
|
|
|
|
|
|
掃描準確度 Maximum scanning accuracy |
|
|
25-2500DPI |
|
|
|
|
|
支持圖形格式 Support graphic format |
|
DST、PLT、BMP、DXF |
|
|
||
|
|
|
|
|
|
|
||
|
|
重復定位度： Repeatability: |
|
<0.025mm |
|
|
||
|
|
|
|
|
|
|
||
|
|
形成文字(mm)： Minimum formed text (mm): |
|
漢字2*2；字母1*1 Chinese characters 2 * 2; letters 1 * 1 |
|
|
||
|
|
|
|
|
|
|
||
|
|
雕刻深度： Carving depth: |
|
0～30mm（視材料情況而定） 0 ～ 30mm (depending on the material condition) |
|
|
||
|
|
|
|
|
|
|
||
|
|
分 辨 率：Resolution |
|
1200dpi |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
電 |
源：power supply: |
|
AC220V±10% 50Hz |
|
|
|
|
|
|
|
|
|
|
||
|
|
工作溫度： Operating temperature: |
|
0~45℃ |
|
|
||
|
|
|
|
|
|
|
||
|
|
工作濕度： Working humidity: |
|
5%～95%（無凝水） 5% ～ 95% (no condensation) |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
凈 |
重：net weight: |
|
258kg |
|
|
|
|
|
|
|
|
|
|||
|
|
操作系統： operating system: |
|
LASER STAR，USB 連接口，LCD 液晶顯示面板，可脫機操作 LASER STAR, USB connection port, LCD liquid crystal display panel, can be operated offline |
|
|||
|
|
|
|
|
|
|||
|
|
支持圖形格式： Support graphic format: |
|
BMP、JPEG、GIF、TIFF、PCX、PLT、AI、TGA、DXP 等 |
|
|||
|
|
|
|
|
|
|
||
|
|
輔助裝置： assisting equipments: |
|
吸風機與排風裝置 Suction fan and exhaust device |
|
|
||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
支持軟件 Support software |
|
|
CORELDRAW、PHOTOSHOP、AUTOCAD |
|
||
|
|
|
|
|
|
|
|
|

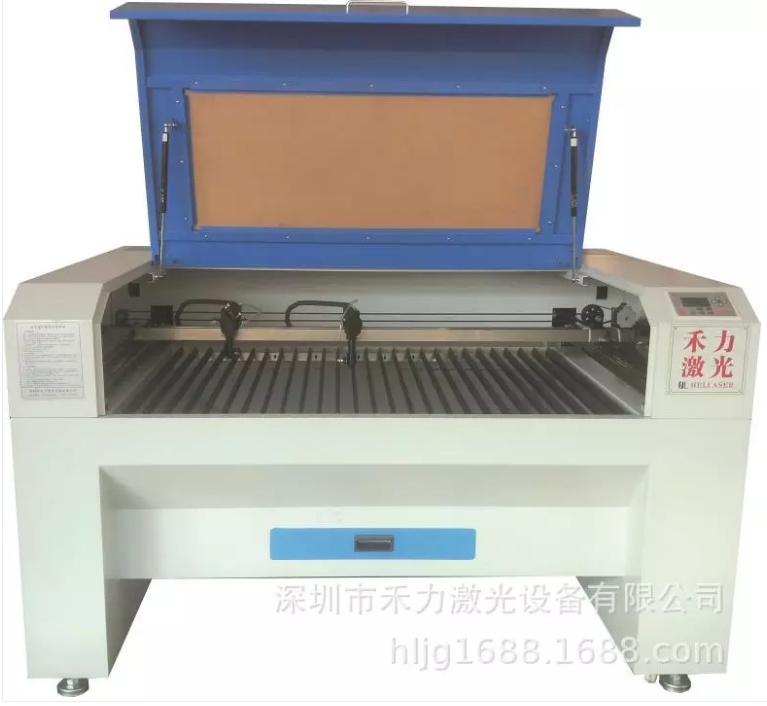

激光切割雕刻機性能特點簡介
1 、深圳禾力激光自主研發生產出的有機玻璃亞克力工藝品激光切割雕刻機，集切割、雕刻功能
于一體，激光切割機速度快，雕刻激光功率強，激光切割機厚可切割 30MM有機玻璃亞克力。
2、激光切割機使用臺灣原裝導軌，切割度 0.10mm。激光切割機軟件功能強大，切割各種圖形
準反應快。結實鋁型材龍門架結構，多年不變形。
3 激光切割機使用國內 80W-150W 穩定激光器系統可每天 24 小時不間斷使用，聚焦鏡片、金屬反光鏡片，光能損失少，能量更集中。激光切割機切割速度快：如切割 3mm 厚度的亞克力，切割速度在 1.5 米/分鐘以上，
4、采用固定工作臺，獨特的旋轉收束激光頭設計，可根據需要升降切割頭進行調焦。
5 、激光切割機獨到的設計使系統的運行更加平穩，板材切割面的光澤度達到超乎想象的平滑光整，完全省去了傳統的刀刻火拋等煩瑣的工序。
6、可通過電腦隨意設計圖形,支持幾十種文件輸出格式，操作簡便,性能穩定,切割加工具有無污染等眾多特點，制作雕刻樣品， 有分單激光頭與雙激光頭，采用雙激光頭，可同時切割兩件同樣的產品提高了生產效率。
Brief introduction of the performance characteristics of laser cutting engraving machine
1. Plexiglass acrylic handicraft laser cutting and engraving machine independently developed and produced by Shenzhen Heli Laser, integrating cutting and engraving functions
In one, the laser cutting machine is fast, the carving is exquisite, and the positioning is accurate. The laser power is strong, the thickest laser cutting machine can cut 30MM acrylic acrylic.
2. The laser cutting machine uses Taiwan original guide rails with a cutting accuracy of 0.10mm. Laser cutting machine software is powerful, cutting various graphics
High precision and quick response. Sturdy aluminum gantry frame structure, without deformation for many years.
3. The laser cutting machine uses the domestic 80W-150W stable laser system that can be used 24 hours a day, high-energy focusing lenses, excellent metal reflective lenses, less light energy loss, and more concentrated energy. The laser cutting machine has a fast cutting speed: for example, when cutting acrylic with a thickness of 3 mm, the cutting speed is above 1.5 m / min.
4. Adopt fixed worktable, unique design of rotating beam laser head, can adjust the focus by raising and lowering the cutting head according to the need, with extremely high precision.
5. The unique design of the laser cutting machine makes the system run more smoothly. The gloss of the cutting surface of the plate reaches a smoother than expected, completely eliminating the cumbersome processes such as traditional knife carving and fire throwing.
6. Graphics can be designed at will through the computer, supporting dozens of file output formats, easy to operate, stable performance, cutting processing has many advantages such as high precision, high efficiency, high cost performance, no pollution, etc., beautifully carved samples, single laser The head and the double laser head adopt the double laser head, which can cut two identical products at the same time, which greatly improves the production efficiency.
激光機主要配置：
1、 激 光 器： 功率 100W（標準配置）
2、 導 軌： 臺灣原裝直線導軌，臺灣上銀牌導軌。
3、 驅動系統： 八線高速步進系統，專業驅動器驅動。
4、 硬件插補： 切割各種圖形反應快。
5、 冷卻水箱： 配置 CW3000 循環性冷卻機。
6、 抽 風 機： 550W 強力抽風機。
7、 空氣壓縮機：500W 電磁式空氣壓縮機（無水帶干燥過濾器）。
8、 激光頭鏡片：進口聚焦鏡。
9、 全套禾力軟件激光切割雕刻系統。
The main configuration of the laser machine:
1. Laser: Power 100W (standard configuration)
2. Guide rail: Taiwan original linear guide rail, Taiwan's silver guide rail, high precision.
3. Drive system: Eight-line high-speed stepping system, driven by professional driver.
4. Hardware interpolation: Cutting various graphics with high precision and quick response.
5. Cooling water tank: equipped with CW3000 circulating cooling machine.
6. Exhaust fan: 550W powerful exhaust fan.
7. Air compressor: 500W electromagnetic air compressor (without water filter).
8. Laser head lens: imported focusing lens.
9. Full set of Heli software laser cutting and engraving system.
