					Category |
					Trade- |
					Equivalent to China Standard |
					Characteristics & application |
					Equivalent to AWS |
| Hard-surfacing 硬 面 堆 焊 | D 667 | EDZCr-B-15 |
					HRc≥48. Resistance to wear, gas corrosion and oxidation. Hardfacing of blast furnace hopper and cracker part. | |
| D 802 | EDCoCr-A-03 |
					HRc38-47. Resistance to heat, wear and corrosion. Hardfacing of high temperature part such as the edge of thermo-cutter. | ECoCr-A | |
| D 812 | EDCoCr-B-03 |
					HRc45-50. Resistance to heat, wear and corrosion. Hardfacing of high temperature part such as internal-combustion engine valve. | ECoCr-B | |
| D 822 |
					HRc≥53. Resistance to Wear and heat, bad shock resistance. Hardfacing of rotating blade wheel of boiler. | |||
| D 832 | EDCoCr-C-03 |
					HRc≥50. Wear and heat resistance. Hardfacing of high temperature part such as hot-rolling guided way. | ECoCr-C | |
| D 842 | EDCoCr-D-03 |
					HRc28-38. Corrosion and thermo-fatigue resistance, work harding. Hardfacing of hot forging die. | ||
|

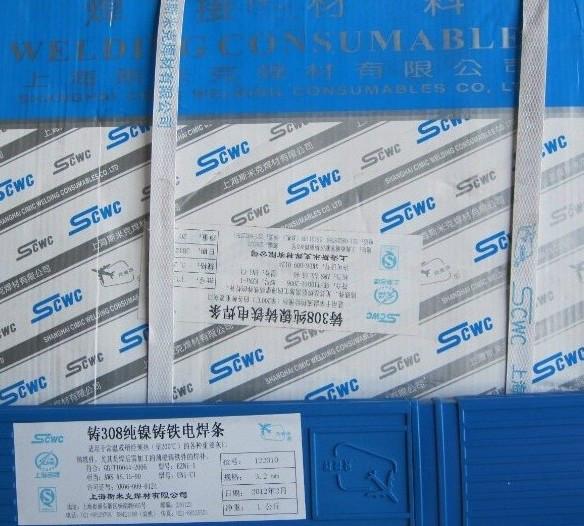

 Cast iron 鑄 鐵 | Z 308 | EZNi |
					Pure nickel, excellent general properties. Used to weld thin cast iron part and repair welding machined surface, such as guided way of machine tool. | ENi-Cl |
| Z 408 | EZNiFe |
					Iron nickel, high strength and excellent ductility. Repair welding of important gray cast iron and nodular cast iron, such as cylinder cap. | ENiFe-Cl | |
| Z 508 | EZNiCu-1 |
					Copper nickel, good machinability and bad crack resistance. Repair welding of sand hole and gray cast iron machined surface subject to no load. | ENiCu-B | |
|
 Copper alloys 銅 合 金 | Cu 107 | ECu |
					Red copper, atmosphere and sea water corrosion and excellent electric conductivity. Welding of red copper such as electrical copper row. | ECu |
| Cu 207 | ECuSi |
					Silicon bronze, corrosion resistance and high strength. Welding of copper, silicon bronze and brass. | ECuSi | |
| Cu 227 | ECuSnB |
					Tin phosphor bronze, corrosion resistance and high strength. Welding of copper, silicon bronze and brass. | ECuSn-C | |
| Cu 237 | ECuAl |
					Aluminum bronze, wear and corrosion and high strength. Welding or surfacing of copper alloys. | ECuAl-A2 | |
| Aluminum alloys 鋁 合 金 | Al 109 | TAl |
					Pure aluminum, excellent corrosion resistance and middle strength. Welding of pure aluminum. | E1100 |
| Al 209 | TAlSi |
					Silicon aluminum, good crack resistance and wide range of usage. Welding of aluminum alloys other than aluminum magnesium alloys. | E4043 | |
| Al 309 | TAMn |
					Manganese aluminum, corrosion resistance and high strength. Welding of aluminum alloys. | E3003 | |
| Nickel alloys 鎳合金 | Ni 102 | ENi-1 |
					Pure nickel. Welding and surfacing of nickel and nickel to steel. | ENi-1 |
| Ni 207 | ENiCu-7 |
					Copper nickel. Welding and surfacing of copper nickel and copper nickel to steel. | ENiCu-7 |
| Category 類 別 |
					Trade 牌 號 | Chemical composition 主要成份(%) | Characteristics & application 特性和用途 | Equivalent to AWS 相當AWS |
| Hardfacing 硬 面 堆 焊 | S 101 |
					C3 Cr28 Ni4 |
					HRc48-54. Resistance to wear, gas corrosion and oxidation. Hardfacing of bucket tooth and case pump. | |
| S 111 |
					C1 Cr29 W5 |
					HRc38-47. Resistance to wear and corrosion at high-temperature. Hardfacing of high temperature and pressure valve. | ECoCr-A | |
| S 112 |
					C1.5 Cr29 W8 |
					HRc45-50. Resistance to wear and corrosion at high-temperature. Hardfacing of valve and hot-rolling pass. | ECoCr-B | |
| S 113 |
					C2.5 Cr30 W17 |
					HRc≥55. Wear and heat resistance at high temperature, bad shock resistance. Hardfacing of screw charging carriage. | ||
| S 114 |
					C2.5 Cr30 W12 |
					HRc≥53. Wear and heat resistance at high temperature, bad shock resistance. Hardfacing of three-cone bit. | ECoCr-C | |
| Copper alloys 銅
 合
 金 | S 201 |
					Sn1 Si0.3Mn0.3 |
					Good mechanical properties and crack resistance. Gas welding and argon arc welding of red copper. | ERCu |
| S 211 |
					Si3 Mn1 |
					Good mechanical properties. Argon arc welding of copper alloys and MIG brazing of steel. | ERCuSi-Al | |
| S 212 | Sn5 Cu Rem. |
					Wear resistance. Argon arc welding of copper alloys and surfacing of steel. | ERCuSn-A | |
| S 213 | Sn8 Cu Rem. |
					Wear resistance. Argon arc welding of copper alloys and surfacing of steel. | ERCuSn-C | |
| S 214 | Al7.5 Cu Rem. |
					Wear and corrosion resistance. Argon arc welding of copper alloys and surfacing of steel. | ERCuAl-A1 | |
| S 215 | Al9 Cu Rem. |
					Wear and corrosion resistance. Argon arc welding of copper alloys and surfacing of steel. | ERCuAl-A2 | |
| S 221 |
					Cu60 Sn1 Si0.3 |
					Melting point is about 890℃. Gas welding and carbon arc welding of brass, also braze welding of copper, steel and cast iron. | ||
| S 221F |
					Cu60 Sn1 Si 0.3 |
					S221 welding rod coated with flux. | ||
| S 222 |
					Cu58Sn0.9Si0.1 |
					Melting point is about 880℃. Gas welding and carbon arc welding of brass, also braze welding of copper, steel and cast iron. | RBCuZn-C | |
| S 222F |
					Cu58Sn0.9Si0.1 |
					S222 welding rod coated with flux. | RBCuZn-C | |
| S 223 |
					Cu59 Sn0.6 |
					Melting point is about 900℃. Braze welding of copper, steel and cast iron. | RBCuZn-A | |
| S 224 |
					Cu62 Si0.5 |
					Melting point is about 905℃. Gas welding and carbon arc welding of brass, also braze welding of copper, steel and cast iron. | ||
|
					Copper 銅 合 金 | S 225 |
					Cu48 Ni10 |
					Melting point is about 935℃ and high strength. Braze welding of steel, nickel and carbide alloys. | RBCuZn-D |
| S 225F |
					Cu48 Ni10 |
					S225 welding rod coated with flux. | RBCuZn-D | |
| S 226 |
					Cu60 Sn0.3 |
					Melting point is about 900℃. Gas welding of brass, also braze welding of copper, steel and cast iron. | ||
| S 227 |
					Cu58Sn0.9Ni0.5 |
					Melting point is about 880℃. Gas welding and carbon arc welding of brass, also braze welding of copper, steel and cast iron. | RBCuZn-B | |
| S 229 |
					Cu55 Ni6 Mn4 |
					Melting point is about 920℃, high strength. Braze welding of steel, nickel and hard carbide. | ||
| Aluminum alloys 鋁 合 金 | S 301 | Al≥99.5 |
					Good ductility and corrosion resistance. Gas welding and argon arc welding of pure aluminum. | ER1100 |
| S 311 | Si5 Al Rem. |
					Corrosion resistance, wide range of usage. Gas welding and argon arc welding of aluminum alloys other than high magnesium alloys. | ER4043 | |
| S 321 | Mn1.3 Al Rem. |
					Good corrosion resistance, weldability and ductility. Gas welding and argon arc welding of aluminum alloys. | ||
| S 331 |
					Mg5 Mn0.4 |
					Corrosion resistance and high strength. Argon arc welding of aluminum alloys. | ER5183 |
斯米克釬焊料分別有:(銅鋅釬焊料) ,(銅磷銀基釬焊料),(鋁基釬焊料),(錫鉛釬焊料),(鎳基釬焊料).簡介如下:
|
					Category |
					Trade-mark |
					Specification |
					Melting |
					Chemical |
					Application |
					Equivalent |
|
					Copper 銅鋅 | L103 |
					Wire & rod | 885-888 | Cu54 Zn Rem. |
					Brazing of copper, bronze and steel, subjected to low load. | |
| L104 |
					Foil | 890-930 |
					Cu57 Mn2 |
					Brazing of carbide cutting tool. | ||
|
					Copper
 銅磷 | L201 |
					Cast rod, wire & rod, powder | 710-800 | P7 Cu Rem. |
					Brazing of copper and copper alloys. | BCuP-2 |
| L204 |
					Cast rod, wire | 640-815 |
					P5 Ag15 |
					Brazing of copper, copper alloys, silver and molybdenum etc. | BCuP-5 | |
| L205 |
					Cast rod, wire & rod, powder | 640-800 |
					P6 Ag5 |
					Brazing of copper and copper alloys. | BCuP-3 | |
| L207 |
					Cast rod, wire & rod | 640-770 |
					P7 Ag5 |
					Brazing of copper and copper alloys. | BCuP-7 | |
| L209 |
					Cast rod, wire | 684-710 |
					P7 Ag2 |
					Brazing of copper and copper alloys. | BCuP-6 | |
|
					 Silver 銀基 | L302 |
					Wire & rod | 745-775 |
					Ag25 Cu40 |
					Brazing of copper, copper alloys, steel and stainless steel etc. | |
| L303 |
					Wire & rod | 660-725 |
					Ag45 Cu30 |
					Brazing of copper, copper alloys, steel and stainless steel etc. | BAg-5 | |
| L303F |
					Flux coated rod | 660-725 |
					Ag45 Cu30 |
					L303 coated with flux, the same application as L303. | BAg-5 | |
| L304 |
					Foil | 690-775 |
					Ag50 Cu34 |
					Brazing of copper, copper alloys and steel etc. | BAg-6 | |
| L308 |
					Wire & rod | 779-780 | Ag72 Cu Rem. |
					Brazing of copper and nickel under vacuum or reducing protective atmosphere. | BAg-8 | |
| L312 |
					Wire & rod | 595-605 | Ag40.Cu.Zn.Cd |
					Brazing of copper, copper alloys, steel and stainless steel etc. | ||
| L313 |
					Wire & rod | 625-635 | Ag50.Cu.Zn.Cd |
					Brazing of copper, copper alloys, steel and stainless steel etc. | BAg-1a | |
| L321 | Wire & rod 絲 | 615-650 | Ag56.Cu.Zn.Sn |
					Brazing of copper, copper alloys, steel and stainless steel etc. | BAg-7 | |
| L323 |
					Wire & rod | 665-755 | Ag30.Cu.Zn.Sn |
					Brazing of copper, copper alloys, steel and stainless steel etc. | ||
| L325 |
					Wire & rod | 645-685 | Ag45.Cu.Zn.Sn |
					Brazing of copper, copper alloys, steel and stainless steel etc. | BAg-36 | |
| L326 |
					Wire & rod | 650-720 | Ag38.Cu.Zn.Sn |
					Brazing of copper, copper alloys, steel and stainless steel etc. | BAg-34 | |
| Aluminum base 鋁基 | L400 |
					Cast rod, wire & rod | 577-582 |
					Si11.5 |
					Brazing of aluminum and aluminum alloys. | BAlSi-4 |
| L401 |
					Cast rod | 525-535 |
					Si5 Cu28 |
					Brazing of aluminum and aluminum alloys. | ||
| Tin lead 錫鉛 | L600 |
					Wire & rod | 183-185 |
					Sn60 Sb≤0.8 |
					Soldering of fusible metals and heat-treated part. | 60Sn |
| L601 |
					Wire & rod | 183-227 |
					Sn18 Sb2 |
					Soldering of copper, copper alloys and galvanized iron plain sheet. | 18Sn | |
| L602 |
					Wire & rod | 183-256 |
					Sn30 Sb2 |
					Soldering of copper, brass, copper alloys and galvanized iron plain sheet. | 30Sn | |
| L603 |
					Wire & rod | 183-235 |
					Sn40 Sb2 |
					Soldering of copper, copper alloys, steel and zinc parts. | 40Sn | |
| L604 |
					Wire & rod | 183-222 |
					Sn90 Sb≤0.15 |
					Soldering of copper and steel for food and medicine field. | 90Sn | |
| L605 |
					Wire & rod | 232-240 | Ag5 Sn95 |
					Soldering of copper and steel for electrical and food field. | ||
| L608 |
					Wire & rod | 295-305 |
					Sn5.5 Ag2.5 |
					Soldering of copper, copper alloys, steel and stainless steel. | ||
| Nickel base 鎳基 | L702 |
					Powder | 970-1000 |
					Cr7 B3 Si4 |
					Brazing of stainless steel under vacuum or protective atmosphere. | BNi-2 |
|
					Category |
					Trade-mark |
					Product name |
					Characteristics & application |
|
					Gas 氣焊 | CJ301 |
					Copper gas welding flux |
					Melting point is about 650℃, flux for gas welding and brazing of copper and copper alloys. |
| CJ401 |
					Aluminum gas welding flux |
					Melting point is about 560℃, flux for gas welding of aluminum and aluminum alloys. | |
|
					Silver 銀釬焊 | QJ101 |
					Silver brazing flux |
					Brazing flux of copper, copper alloys, steel and stainless steel within 550-750℃. |
| QJ102 |
					Silver brazing flux |
					Brazing flux of copper, copper alloys, steel and stainless steel within 600-850℃. | |
| QJ102A |
					Silver brazing flux |
					Brazing flux of copper, copper alloys, steel and stainless steel within 600-850℃. Non agglomeration. | |
| QJ112 | Silver brazing paste flux 膏狀銀釬焊熔劑 |
					Brazing flux of copper, copper alloys, steel and stainless steel within 600-850℃. | |
| QJ103 |
					Silver brazing flux |
					Brazing flux of copper, copper alloys, steel and stainless steel within 550-750℃. | |
| Aluminum brazing 鋁釬焊 | QJ201 |
					Aluminum brazing flux |
					Brazing flux of aluminum and aluminum alloys within 450-620℃. |
| QJ207 |
					Aluminum brazing flux |
					Brazing flux of aluminum and aluminum alloys within 560-620℃. |
|
					Category |
					Trade- |
					Chemical |
					Hardness |
					Application |
|
					 Oxy- 氧 乙 炔 焰 噴 焊 | F103 | Cr10 B1.5 Si3 Ni Rem. | HRc 25 |
					Spray-fusing of cast ir, on parts,,, such as die for glass, cylinder, and guide. |
| F101 | Cr10 B2.5 Si3 Ni Rem. | HRc 45 |
					Spray-fusing of parts resistance to wear and corrosion, such as valve, the rotator and piston of pump. | |
| F101Fe | Cr10 B2.5 Si3 Fe10 Ni Rem. | HRc 45 |
					Spray-fusing of corrosion-resistant parts, such as axle and stigma. | |
| F102 | Cr16 B4 Si4 Ni Rem. | HRc 60 |
					Spray-fusing of parts resistance to wear, corrosion and high temperature oxidation, such as die and piston. | |
| F102Fe | Cr16 B4 Si4 Fe15 Ni Rem. | HRc 60 |
					Spray-fusing of corrosion-resistant parts, such as axle and cold die. | |
| F105 | F102+50%WC | HRc 60 |
					Spray-fusing of parts resistance to grain-wear , such as guide plate, scraper and blade of fan. | |
| F105Fe | F102Fe+35%WC | HRc 60 |
					Spray-fusing of parts resistance to grain-wear, such as guide plate, scraper and blade of fan. | |
| F108 | F102+80%WC | HRc 60 |
					Spray-fusing of parts resistance to strong grain-wear and free machining, such as harrow teeth of dredger. | |
| F301 | Cr5 B4 Si4 Ni30 Fe Rem. | HRc 45 |
					Spray-fusing of vulnerable parts of agricultural machinery and mining machinery, such as gear and axletree. | |
| Track iron powder 軌鐵粉 | Cr5 B1.5 Si3 Ni30 Fe Rem. | HRc 28 |
					Repair spray-fusing of defects such as scratch and concavity of railroad track. | |
| Oxy-acetylene flame spraying 氧 乙 炔 焰 噴 涂 | F111 | Cr5 B1.5 Si3 Ni30 Fe Rem. | HB 150 |
					Spraying of bearing and cutting parts etc. |
| F113 | Cr10 B1.5 Si3 Ni Rem. | HB 250 |
					Spray-fusing or spraying, such as roll, piston and axle of wear and corrosion resistance. | |
| F313 | Cr15 B1.5 Fe Rem. | HB 250 |
					Spraying of dryer of papermaking and axle. | |
| F314 | Cr18 Ni9 B1.5 Fe Rem. | HB 250 |
					Spraying of axle. | |
| F412 | Sn10 P0.3 Cu Rem. | HB 80 |
					Spraying of axle and bearing. | |
| F512 | 復合Al5Ni95 |
					Backing spray of transition layer between base and working layer. | ||
| PTA hardfacing 等 離 子 弧 噴 焊 | F221 | Cr26 W5 B0.7 Co Rem. | HRc 43 |
					PTA hardfacing of sealing surface of high temperature and high pressure valve and the edge of hot shearing tool. |
| F223 | Cr21 W5 B1.5 Co Rem. | HRc 40 |
					PTA hardfacing of parts resistance to wear and corrosion at high temperature, such as valve under high temperature and high pressure, and blower. | |
| F321 | Cr13 B1.5 Si1 Fe Rem. | HRc 45 |
					PTA hardfacing of corrosion-resistant parts under mid-temperature and mid-pressure, such as stop-plate etc. | |
| F322 | Cr23 Ni13 Si5 B1 Fe Rem. | HRc 40 |
					PTA hardfacing of corrosion-resistant parts under mid-temperature and mid-pressure, such as valve base etc. | |
| F422 | Sn10 P0.3 Cu Rem. | HB 80 |
					PTA hardfacing of axle and bearing etc. |
