Katko隔離開關（aluminium switches 16-40A）
Katko隔離開關代理商：上海頤品自動化科技有限公司
Enclosed Isolators
KATKO IsoSafe safety switches and switch disconnectors from an extensive 10–1600 A selection.
The right enclosure for all operating conditions.

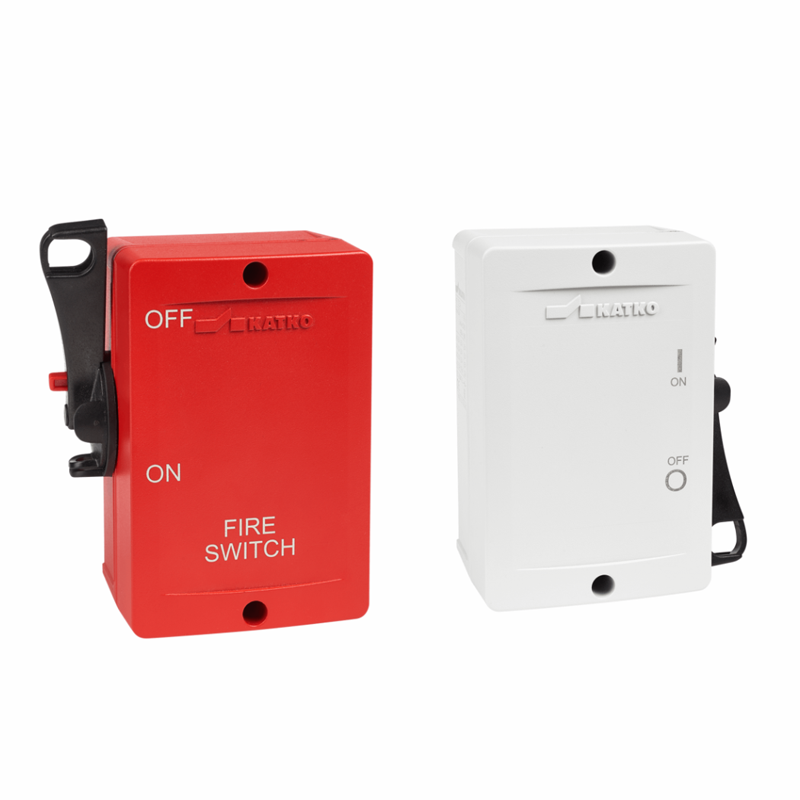

Side operated aluminium switches 16-40A
Available in grey/back, yellow/red or fireman red
Good resistance against UV and many chemicals
Withstands high impact and has wide operating temperature
Fully rated Load Break Switch breaking capacity of 8 x AC23 rating
Cable entries: 2 x M25 as standard on the top and bottom
Large cable terminals 1,5 – 16 mm 2
Mounting holes: 213,0 x 144,0
Padlockable handle in 0-position and also available in 1-position
EMC shielding with EMC glands as an option
KE handle on right side, KEF handle on left side
Tested according to IEC 60947-3
Note! Al-cables cannot be connected directly to switch terminals.
For Al-cable connection please use a bi-metal cable connector, available here.
Technical datasheet >>
CE，EAC，RoHS
Extensive selection of KATKO ConnectSafe terminal blocks suitable for both aluminium and copper cables.
Easy to install directly onto a DIN rail or with screws.
Note: Certificates may vary between products. Check product specific certificates from the product page.
Data subject to change without notice. Always confirm the data is correct from the seller.
| Products Type | Number of Poles | AC-22 400/415 V | AC-23 400/415 V | AC-23 690 V | EAN | Enclosure | Weight (kg) |
| KE 316 A A2S 2XM25M KST16M | 3 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410304488 | A2S | 0.9 |
| KE 340 A A2S 2XM25M KST16M | 3 | 40 A | 40 A / 22 kW | 25 A / 22 kW | 6419410304501 | A2S | 0.9 |
| KE 325 A A2S 2XM25M KST16M | 3 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410304495 | A2S | 0.9 |
| KE 416 A A2S 2XM25M KST16M | 4 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410304518 | A2S | 0.9 |
| KE 425 A A2S 2XM25M KST16M | 4 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410304525 | A2S | 0.9 |
| KE 440 A A2S 2XM25M KST16M | 4 | 40 A | 40 A / 22 kW | 25 A / 22 kW | 6419410304532 | A2S | 0.9 |
| KE 316 AYR A2S 2XM25M KST16M | 3 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410304600 | A2S | 0.9 |
| KE 325 AYR A2S 2XM25M KST16M | 3 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410304617 | A2S | 0.9 |
| KE 340 AYR A2S 2XM25M KST16M | 3 | 40 A | 40 A / 22 kW | 25 A / 22 kW | 6419410304624 | A2S | 0.9 |
| KE 416 AYR A2S 2XM25M KST16M | 4 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410304631 | A2S | 0.9 |
| KE 425 AYR A2S 2XM25M KST16M | 4 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410304648 | A2S | 0.9 |
| KE 440 AYR A2S 2XM25M KST16M | 4 | 40 A | 40 A / 22 kW | 25 A / 22 kW | 6419410304655 | A2S | 0.9 |
| KEF 316 A A2S | 3 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410305003 | A2S | 0.9 |
| KEF 325 A A2S | 3 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410304846 | A2S | 0.9 |
| KEF 340 A A2S | 3 | 40 A | 40 A / 22 kW | 25 A / 22 kW | 6419410304853 | A2S | 0.9 |
| KEF 416 A A2S | 4 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410304860 | A2S | 0.9 |
| KEF 425 A A2S | 4 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410304877 | A2S | 0.9 |
| KEF 440 A A2S | 4 | 40 A | 40 A / 22 kW | 25 A / 22 kW | 6419410304884 | A2S | 0.9 |
|
Showing
1 to 18 of 18 entries
|
