Katko隔離開關（Enclosed switch fuses 16-630A）
Katko隔離開關代理商：上海頤品自動化科技有限公司
Enclosed Isolators
KATKO IsoSafe safety switches and switch disconnectors from an extensive 10–1600 A selection.
The right enclosure for all operating conditions.

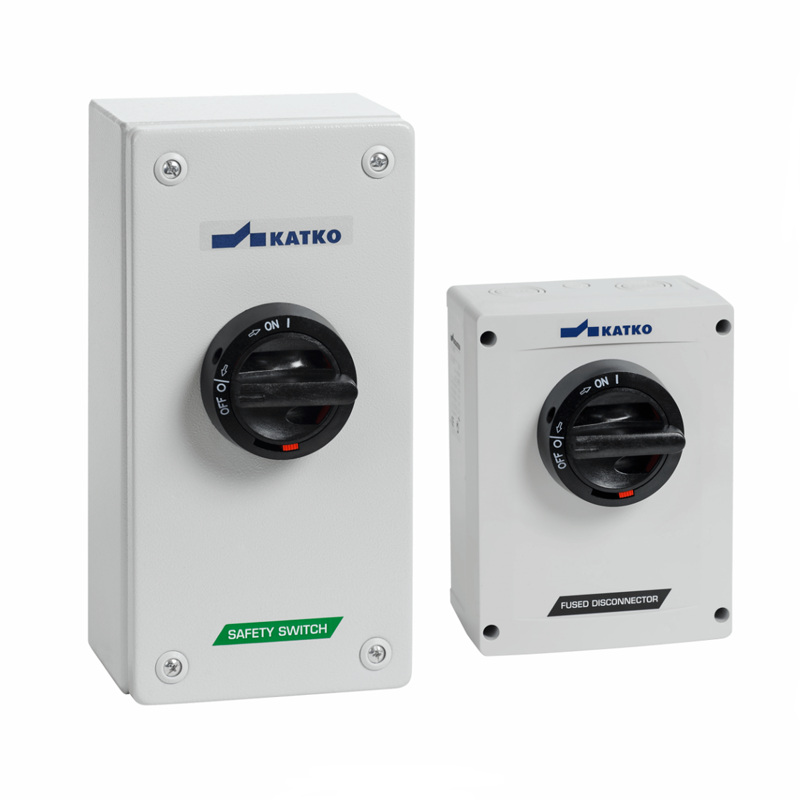

Enclosed switch fuses 16-630A
Available as 1P, 2P, 3P and 4P versions
KKVT/M/R (16 – 32 A) with KU switch and KV 10×38 fuse holder
KVKET/M/R (20-630 A) with KVKE switch fuse
Available as BS and DIN fuse version. DIN as standard
All versions available in grey/Back or yellow/red. Grey/back as standard
M=polycarbonate, T=steel, R=stainless steel
Note! Al-cables cannot be connected directly to switch terminals.
For Al-cable connection please use a bi-metal cable connector, available here.
Technical datasheet>>
CE，EAC，RoHS
Extensive selection of KATKO ConnectSafe terminal blocks suitable for both aluminium and copper cables.
Easy to install directly onto a DIN rail or with screws.
Note: Certificates may vary between products. Check product specific certificates from the product page.
Data subject to change without notice. Always confirm the data is correct from the seller.
| Products Type | Enclosure Material | Number of Poles | AC-22 400/415 V | AC-23 400/415 V | AC-23 690 V | EAN | Enclosure |
| KVKET 363 T5 | Sheet steel | 3 | 63 A | 63 / 30 | 63 / 55 | 6419410223284 | T5 |
| KVKET 380 T5 | Sheet steel | 3 | 80 A | 80 / 45 | 80 / 75 | 6419410223291 | T5 |
| KVKET 3100 T5 | Sheet steel | 3 | 100 A | 100 / 55 | 100 / 90 | 6419410223307 | T5 |
| KVKET 3125 T5 | Sheet steel | 3 | 125 A | 125 / 55 | 125 / 110 | 6419410223314 | T5 |
| KVKET 3160 T5 | Sheet steel | 3 | 160 A | 125 / 55 | 125 / 110 | 6419410223321 | T5 |
| KKVM 316 M3 | Polycarbonate | 3 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410377000 | M3 |
| KKVM 325 M3 | Polycarbonate | 3 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410377109 | M3 |
| KVKEM 3100 MF11 | Polycarbonate | 3 | 100 A | 100 A / 55 kW | 100 A / 90 kW | 6419410394250 | MF11 |
| KKVM 332 M3 | Polycarbonate | 3 | 32 A | 32 A / 15 kW | 32 A / 30 kW | 6419410377208 | M3 |
| KVKEM 363 MF11 | Polycarbonate | 3 | 63 A | 63 A / 30 kW | 63 A / 55 kW | 6419410394052 | MF11 |
| KVKEM 380 MF11 | Polycarbonate | 3 | 80 A | 80 A / 45 kW | 80 A / 75 kW | 6419410394151 | MF11 |
| KVKEM 3125 MF11 | Polycarbonate | 3 | 125 A | 125 A / 55 kW | 125 A / 110 kW | 6419410394359 | MF11 |
| KVKEM 3160 MF11 | Polycarbonate | 3 | 160 A | 125 A / 55 kW | 125 A / 110 kW | 6419410394458 | MF11 |
| KVKEM 3200 MF03 | Polycarbonate | 3 | 200 A | 200 A / 110 kW | 200 A / 160 kW | 6419410397565 | MF03 |
| KVKEM 3250 MF03 | Polycarbonate | 3 | 250 A | 250 A / 132 kW | 250 A / 250 kW | 6419410391303 | MF03 |
| KVKEM 3315 MF04 | Polycarbonate | 3 | 315 A | 315 A / 160 kW | 315 A / 315 kW | 6419410303108 | MF04 |
| KVKEM 3400 MF04 | Polycarbonate | 3 | 400 A | 400 A / 200 kW | 400 A / 355 kW | 6419410391501 | MF04 |
| KVKEM 3630 MF04 | Polycarbonate | 3 | 630 A | 630 A / 355 kW | 500 A / 500 kW | 6419410391600 | MF04 |
| KKVT 316 T4 | Sheet Steel | 3 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410379004 | T4 |
| KKVT 325 T4 | Sheet Steel | 3 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410379103 | T4 |
| KKVT 332 T4 | Sheet Steel | 3 | 32 A | 32 A / 15 kW | 32 A / 30 kW | 6419410379202 | T4 |
| KVKET 363 T6 | Sheet Steel | 3 | 63 A | 63 A / 30 kW | 63 A / 55 kW | 6419410395059 | T6 |
| KVKET 380 T6 | Sheet Steel | 3 | 80 A | 80 A / 45 kW | 80 A / 75 kW | 6419410395158 | T6 |
| KVKET 3100 T6 | Sheet Steel | 3 | 100 A | 100 A / 55 kW | 100 A / 90 kW | 6419410395257 | T6 |
| KVKET 3125 T6 | Sheet Steel | 3 | 125 A | 125 A / 55 kW | 125 A / 110 kW | 6419410395356 | T6 |
| KVKET 3160 T6 | Sheet Steel | 3 | 160 A | 125 A / 55 kW | 125 A / 110 kW | 6419410395455 | T6 |
| KVKET 3200 T6 | Sheet Steel | 3 | 200 A | 200 A / 110 kW | 200 A / 160 kW | 6419410393208 | T6 |
| KVKET 3250 T6 | Sheet Steel | 3 | 250 A | 250 A / 132 kW | 250 A / 250 kW | 6419410393307 | T6 |
| KVKET 3315 T7 | Sheet Steel | 3 | 315 A | 315 A / 160 kW | 315 A / 315 kW | 6419410303245 | T7 |
| KVKET 3400 T7 | Sheet Steel | 3 | 400 A | 400 A / 200 kW | 400 A / 355 kW | 6419410393505 | T7 |
| KVKET 3630 T7 | Sheet Steel | 3 | 630 A | 630 A / 355 kW | 500 A / 500 kW | 6419410393604 | T7 |
| KKVR 316 RA4 | Stainless Steel: Polycarbonate Handle | 3 | 16 A | 16 A / 7.5 kW | 16 A / 11 kW | 6419410378007 | RA4 |
| KKVR 325 RA4 | Stainless Steel: Polycarbonate Handle | 3 | 25 A | 25 A / 11 kW | 25 A / 22 kW | 6419410378014 | RA4 |
| KKVR 332 RA4 | Stainless Steel: Polycarbonate Handle | 3 | 32 A | 32 A / 15 kW | 32 A / 30 kW | 6419410378021 | RA4 |
| KVKER 363 R6 | Stainless Steel: Polycarbonate Handle | 3 | 63 A | 63 A / 30 kW | 63 A / 55 kW | 6419410378052 | R6 |
| KVKER 380 R6 | Stainless Steel: Polycarbonate Handle | 3 | 80 A | 80 A / 45 kW | 80 A / 75 kW | 6419410378069 | R6 |
| KVKER 3100 R6 | Stainless Steel: Polycarbonate Handle | 3 | 100 A | 100 A / 55 kW | 100 A / 90 kW | 6419410378076 | R6 |
| KVKER 3125 R6 | Stainless Steel: Polycarbonate Handle | 3 | 125 A | 125 A / 55 kW | 125 A / 110 kW | 6419410378083 | R6 |
| KVKER 3160 R6 | Stainless Steel: Polycarbonate Handle | 3 | 160 A | 125 A / 55 kW | 125 A / 110 kW | 6419410378090 | R6 |
| KVKER 3200 R6 | Stainless Steel: Polycarbonate Handle | 3 | 200 A | 200 A / 110 kW | 200 A / 160 kW | 6419410378106 | R6 |
| KVKER 3250 R6 | Stainless Steel: Polycarbonate Handle | 3 | 250 A | 250 A / 132 kW | 250 A / 250 kW | 6419410378113 | R6 |
| KVKER 3315 R7 | Stainless Steel: Polycarbonate Handle | 3 | 315 A | 315 A / 160 kW | 315 A / 315 kW | 6419410378120 | R7 |
| KVKER 3400 R7 | Stainless Steel: Polycarbonate Handle | 3 | 400 A | 400 A / 200 kW | 400 A / 355 kW | 6419410378137 | R7 |
| KVKER 3630 R7 | Stainless Steel: Polycarbonate Handle | 3 | 630 A | 630 A / 355 kW | 500 A / 500 kW | 6419410378144 | R7 |
|
Showing
1 to 44 of 44 entries
|
